10Kwh Rackmount Lithium Battery Smart Bms For Energy Storage System

Name: 10Kwh Rackmount Lithium Battery Smart Bms For Energy Storage System
Brand: XWELL
Price: 1 USD

Brand Name : XWELL

Model Number : XW-5120W-1

Certification : UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Place of Origin : China

MOQ : 1 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 7-10 working days

Packaging Details : Carton

Nominal voltage : 48 or 51.2 V

Cell type : LiFePO4 prismatic battery

Nominal capacity : 200Ah

Nominal energy : 10.24Kwh

Discharge current : 50A

Max charge current : 50A

Discharge cut-off voltage : 42.5V

Display : LCD optional

Communication interface : RS485, RS232, CAN

Cycle life : >6000 Cycles(80%DOD)

Contact Now

Solar Battery 10Kwh Smart Bms System To Optimize The Performance Rackmount Lithium Battery For Energy Storage System

Parts List(does not come with the battery cells)

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 100/150/200A 16S BMS
1 * Weak electric switch
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * Fuse
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
4 * Battery Terminals (P+ Terminal and P- Terminal)
16 * EVA Boards(for cells)
16 * Epoxy Boards

Features

1. Rack Mounted Lithium battery has LCD screen,convenient setting buttons

2. APP Monitor on your smartphones,and cables&accessories ready for installation

3. To welcome the world cooperation we accept OEM with your logo design

Rackmount Lithium Battery Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black

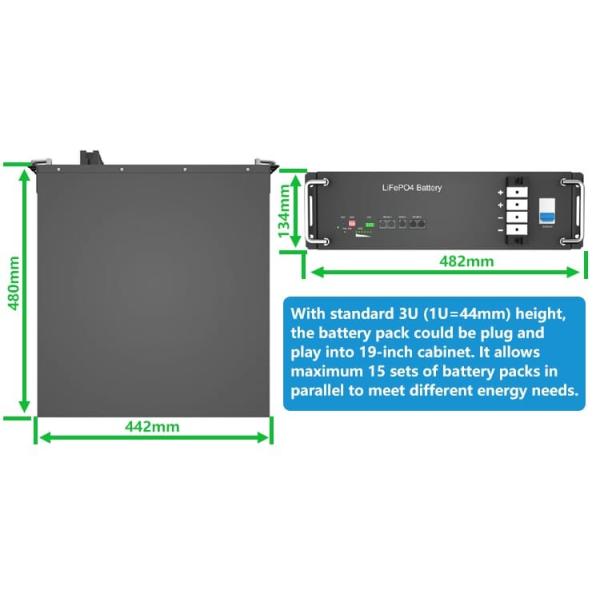

Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of Rackmount Lithium Battery
